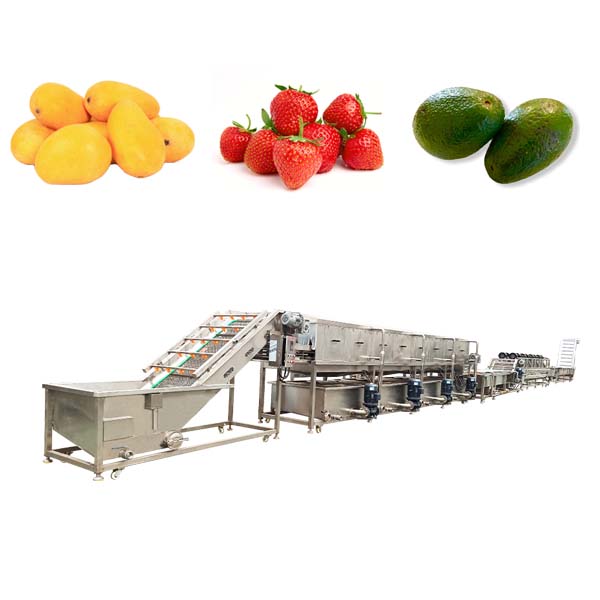

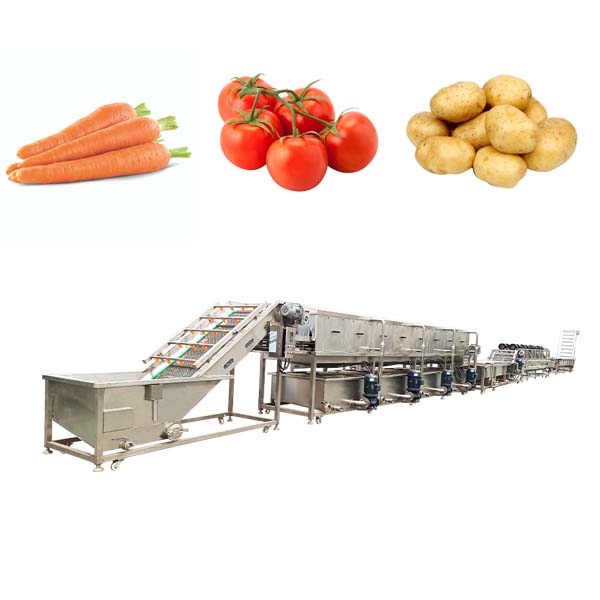

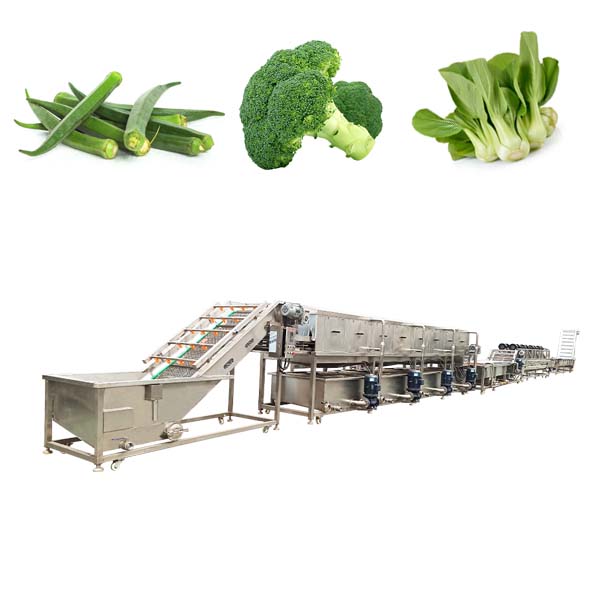

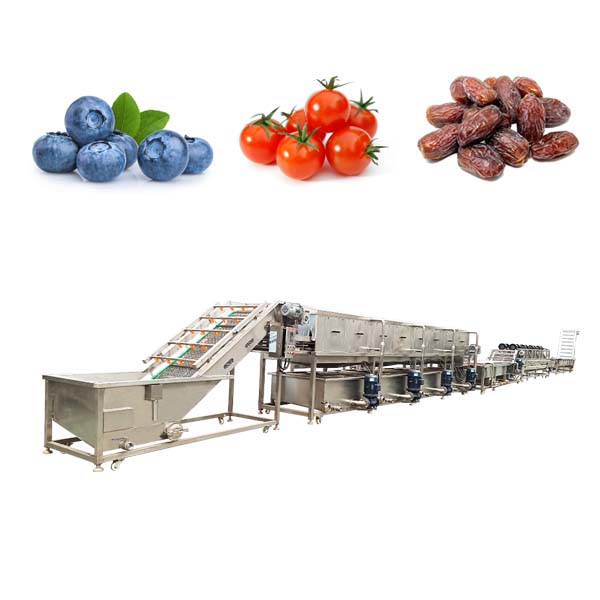

Fruit Vegetables Processing Line
Product introduction:
- 1. vegetable and fruit washing and drying line is suitable for handling those root vegetables, such as potato, carrot, radish, turnip, radish, cassava, beetroot, taro, ginger, etc.
- 2. The output capacity is from 50kg/h to 1000kg/h aoccording to your different needs.
- 3. A good choice for those vegetable distributor, central kitchen, vegetable/fruit processing factory, etc.
- Description
- Advantage
- Parameters
- Application
- Video

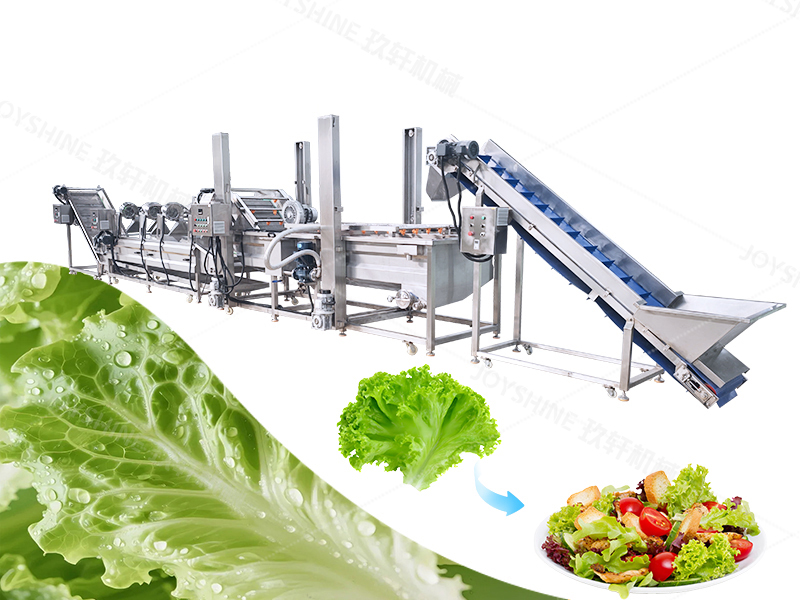

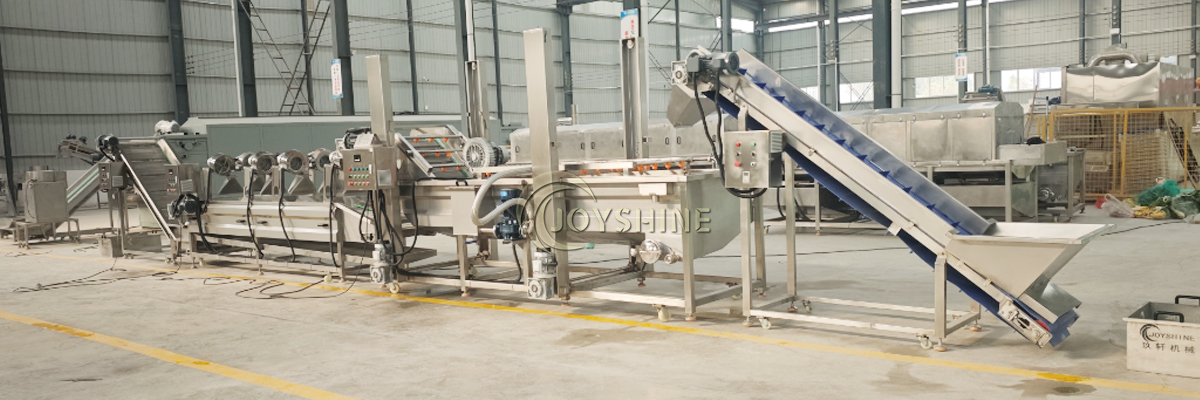

Joyshine fruit and vegetable washing and processing line is a modular and customizable industrial pre-processing solution, designed for washing, air drying, sorting, and cutting various fruits and vegetables.
The production line is not a fixed configuration. Instead, it is tailored according to customers’ actual requirements and the characteristics of different materials.
The processing capacity can be customized (e.g. 100–5000kg/h), making it suitable for fruit and vegetable processing plants, central kitchens, fresh-cut vegetable factories, and frozen food processing facilities.
Typical Processing Flow (Flexible Combination):
Feeding & Lifting → Bubble Washing → High-Pressure Spray Washing → Air Drying → Manual Sorting → Cutting (Optional)
With its modular design, customers can flexibly combine washing, spray cleaning, air drying, sorting, and cutting units based on different cleaning intensity requirements, surface characteristics of materials, and subsequent processing needs.
The line can be used for basic washing and grading, and also serves as an efficient pre-treatment system for further processing such as IQF freezing, drying, and packaging.
Common Core Equipment Includes:

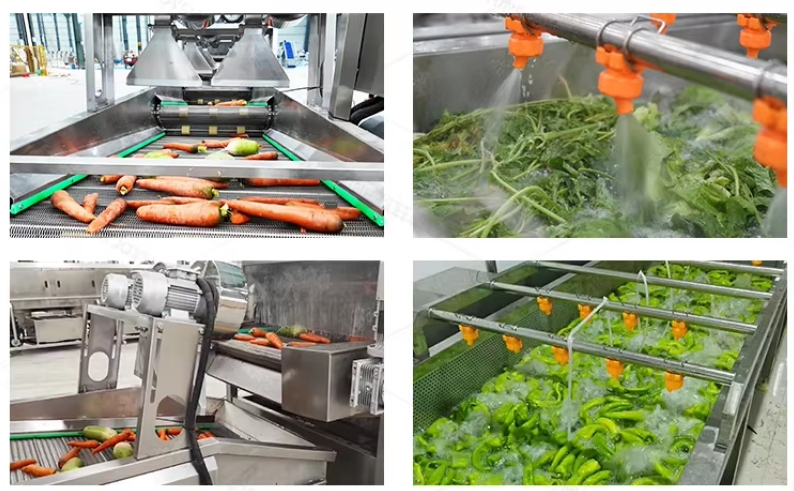

Bubble Washing Machine: Uses air bubble agitation for gentle cleaning, suitable for leafy vegetables, root vegetables, and delicate fruits
High-Pressure Spray Washer: Provides secondary rinsing to further remove surface residues and fine impurities
Air Drying Machine: Removes surface moisture efficiently to improve the efficiency of subsequent processing
Manual Sorting Table: Used for inspection and grading to ensure stable raw material quality before the next process
Cutting Machine (Optional): Enables cutting into slices, strips, cubes, or segments to meet different product requirements
In addition, the production line can be expanded with optional equipment such as ozone sterilization systems, ultrasonic cleaning modules, IQF freezing systems, and automatic packaging machines.
Through flexible combinations of different functional modules, Joyshine helps customers build a professional, efficient, and scalable fruit and vegetable washing and processing line to meet multi-product and multi-process production requirements.
Advantage
Flexible Capacity: The line can be customized from 100–5000kg/h, suitable for different scales of fruit and vegetable processing.
Gentle & Efficient Cleaning: Bubble washing + high-pressure spray + air drying ensures minimal damage and higher product quality.
Modular Design: Equipment can be flexibly combined to easily expand into a complete fruit and vegetable processing line.
Stable & Durable: Industrial-grade structure supports continuous operation, easy maintenance, and long-term reliability.
Multi-Product Compatibility: Supports strawberries, blueberries, cherry tomatoes, root vegetables, and more.
Parameters
| Machine | Model | Dimension | Weight | Voltage | Power | Capacity |
| Elevator | JS-SD-150 | 3000*800*900mm | 500kg | 380V | 6.6kw | 1000kg/h |
| Automatic Bubble Washing Machine | JS-QPQX-4000 | 4000*1200*1300mm | 700kg | 380V | 8.3kw | 1000kg/h |
| Brush Roller Cleaning Machine | JS-SXQX-3000 | 3500*1100*1100mm | 600kg | 380V | 5.25kw | 1000kg/h |
| Air Cooling Drying Machine | JS-FGX-4000 | 4000*1200*1300mm | 700kg | 380V | 6.6kw | 1000kg/h |
| Hand Picking Machine | JS-TJX-5000 | 3000*800*900mm | 200kg | 380V | 5.3kw | 1000kg/h |
| Sorting Machine | JS-FXJ-6000 | 2600*1000*1000mm | 700kg | 380V | 8.4kw | 1000kg/h |
| cutting /slicing/dicing mahcine | JS-QCJ-3000 | 710*660*1085mm | 300kg | 380V | 0.75kw | 1000kg/h |
| Packaging Machine | JS-BZJ-6000 | 3000*800*900mm | 700kg | 380V | 8.6kw | 1000kg/h |
Tips: machine size, configuration and capacity etc can be customized according to your special requirements.This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine.
Applicable Scenarios:
Fruit and vegetable processing factories, central kitchens, fresh-cut vegetable plants, and frozen fruit processing facilities.
Ideal for pre-processing tasks such as washing, air drying, sorting, and grading before further processing like IQF freezing, drying, or packaging.
Suitable Materials:
Fruits: Strawberries, blueberries, cherry tomatoes, cherries, raspberries, blackberries, and other delicate fruits.
Root & Leafy Vegetables: Potatoes, carrots, radishes, turnips, cucumbers, leafy greens, and other root or leafy vegetables.
Flexible configuration allows optional modules such as high-pressure spray washing, ozone sterilization, ultrasonic cleaning, cutting machines, IQF freezing, and automatic packaging to handle multiple types of produce in a single line.
Note: Capacity, equipment configuration, and line combination can be fully customized according to your production needs. Contact Joyshine to get a tailored fruit and vegetable washing and processing solution.
