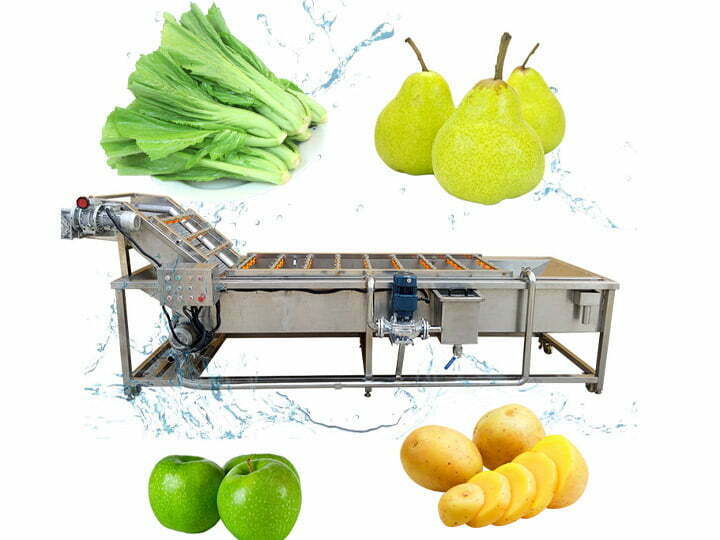

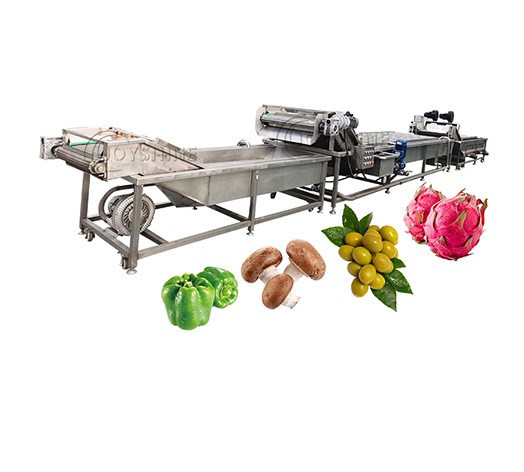

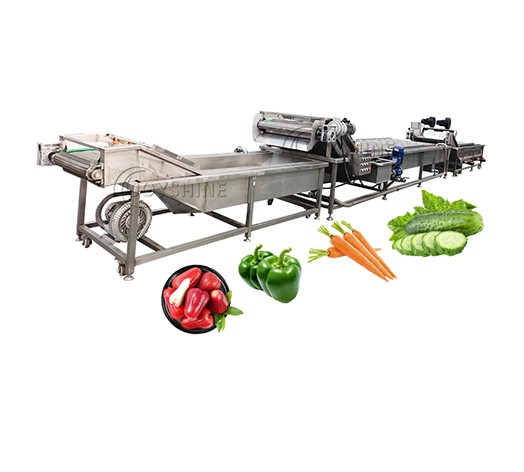

Vegetable And Fruit Washing Line

1. This industrial air bubble washing and drying line is designed and widely used in washing various fruit and vegetable with different shapes.
2. It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
3. It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.

Product Advantage:

  • 1.Equipped with a bubble generator to make the objects roll over
  • 2.High pressure air bubble and spraying water can wash off dirt, sands and other residues
  • 3.Equipped with VFD to better adjust the belt speed
  • 4.Equipped with separate filter tank and water recycling system
  • 5.Equipped with spraying section with clean water for twice washing
  • 6.The objects are automatically conveyored to spraying section by the conveyor mesh belt
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Description

1. This industrial air bubble washing machine is designed and widely used in washing various fruit and vegetable with different shapes.
2. It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
3. It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.

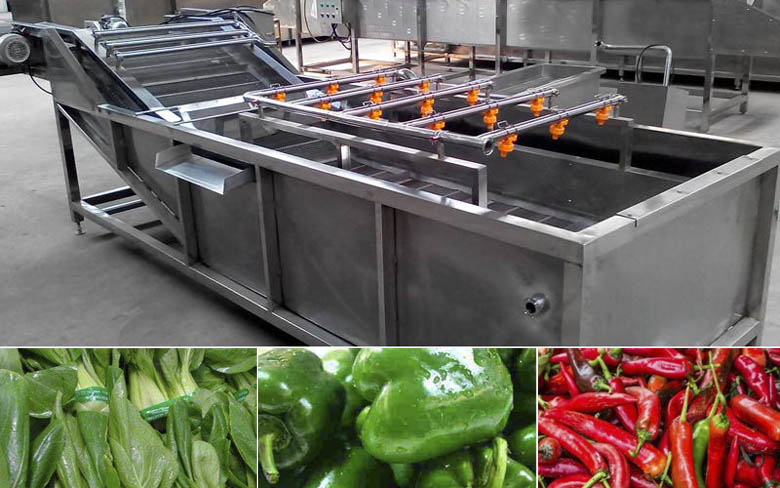

Working Principle:

This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects. Then, there are three ways to clean vegetable and fruit: bubble tumbling, surfing and spraying to clean vegetables, high washing rate and no damage to raw materials. Finally, objects will be cleaned easily.

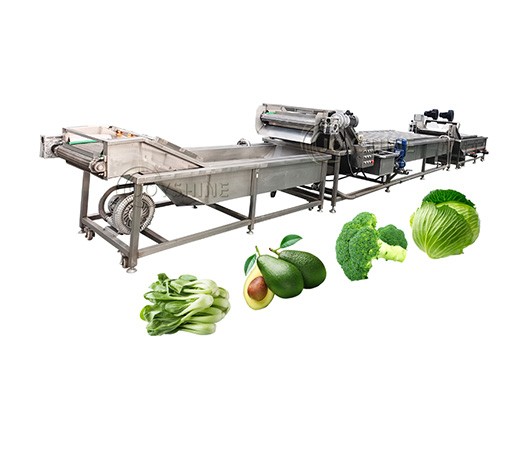

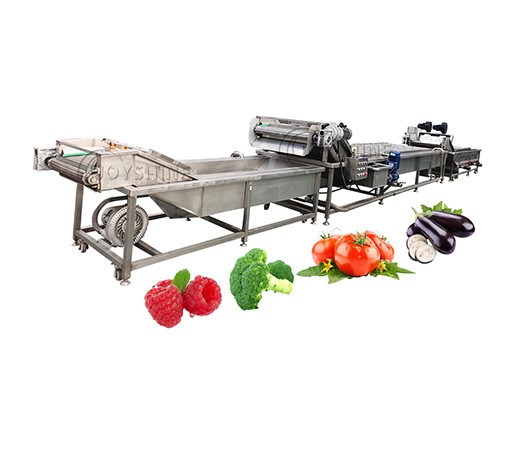

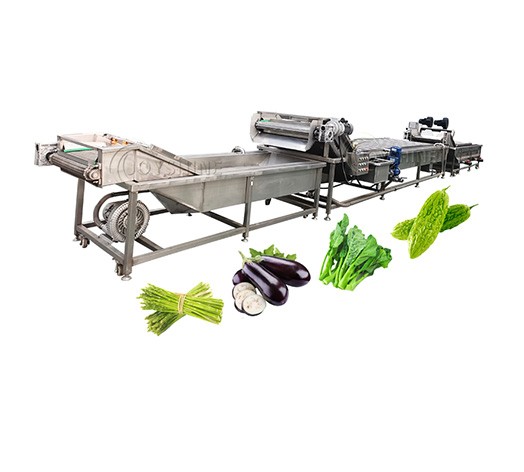

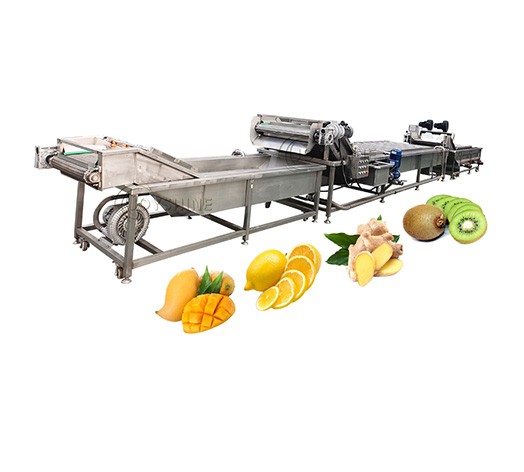

Work processing of vegetable and fruit cleasning and drying line:

We have two best solutions for vegetable and fruit cleaning and drying line according to your needs. If you want to know more details, please contact us as soon as possible.

One solution for low needs with high output capacity like 1000kg/h

1. Elevator ➽ Bubble washing machineAir cooling drying machine ➽ Hand picking machine ➽ Packaging machine ➽ Frozen machine

The other solution for high needs for big scale plant

2. Elevator ➽ Bubble washing machine Brush roller cleaning machineAir cooling drying machine ➽ Hand picking machine ➽ Sorting machine ➽ Packaging machine ➽ Frozen machine



Advantage

  • 1. Equipped with a bubble generator to make the objects roll over
  • 2. High pressure air bubble and spraying water can wash off dirt, sands and other residues
  • 3. Equipped with VFD to better adjust the belt speed
  • 4. Equipped with separating filter tank and water recycling system
  • 5. Equipped with spraying section with clean water for twice washing
  • 6. The objects are automatically conveyored to spraying section by the conveyor mesh belt

How to set fruit vegetable processing factory?

Fruit vegetables line Facility required for the setup is mentioned as follows:

  • Built-up Area: 1000 square feet’s (preferably open shed with a proper drainage system
  • 3000 liters overhead water storage facility 500 liters per hour Reverse Osmosis water treatment and storage facility for final product wash.
  • 15~20 kW three-phase power connection.
  • 2-3 people to operate the plant.

Fruit Washing Line Washing Output:

Through the plant, one can clean 300~400 kgs of vegetables or fruits in an hour. The plant can be operated for 10-15 hours a day. Water quality monitor is offered as optional.

We are a leading manufacturer of fruits and vegetables cleaning lines, the design of our vegetables washing line benefits the users through saving of labor, water, and resources. Contact us if you are interest in our vegetable washing solution.

Parameters

Machine
Model
Dimension
Weight
Voltage
Power
Capacity
Elevator  JS-SD-150 3000*800*900mm 500kg 380V 6.6kw 1000kg/h
Automatic Bubble Washing Machine
JS-QPQX-4000
4000*1200*1300mm
700kg 380V
8.3kw
1000kg/h
Brush Roller Cleaning Machine
JS-SXQX-3000
3500*1100*1100mm
600kg
380V
5.25kw
1000kg/h
Air Cooling Drying Machine
JS-FGX-4000
4000*1200*1300mm
700kg
380V
6.6kw
1000kg/h
Hand Picking Machine
JS-TJX-5000
3000*800*900mm
200kg
380V
5.3kw
1000kg/h
Sorting Machine
JS-FXJ-6000
2600*1000*1000mm
700kg
380V
8.4kw
1000kg/h
Packaging Machine JS-BZJ-6000 3000*800*900mm 700kg 380V 8.6kw 1000kg/h

Tips: machine size, configuration and capacity etc can be customized according to your special requirements.This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine.

Application

Raw material: fruit and vegetables
1. It is suitable for cutting leafy vegetable, such as: cabbage, spinach, pepper, etc.
Root vegetable: potato, taro, onion, sweet potato, eggplant, melon etc.
Fruit: apples, strawberries, jujubes, blueberry another fruit cleaning.
2. Small food processing plant, snack food factory, fruit processing plant.
3. Hotels, food &Beverage factory, farms, restaurant.

Video of vegetable and fruit cleaning and drying line

  •
  •
