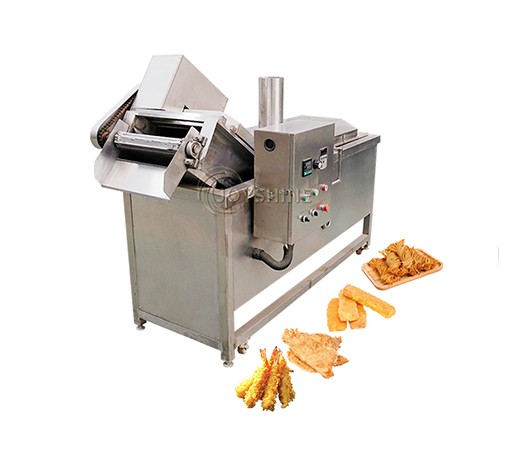

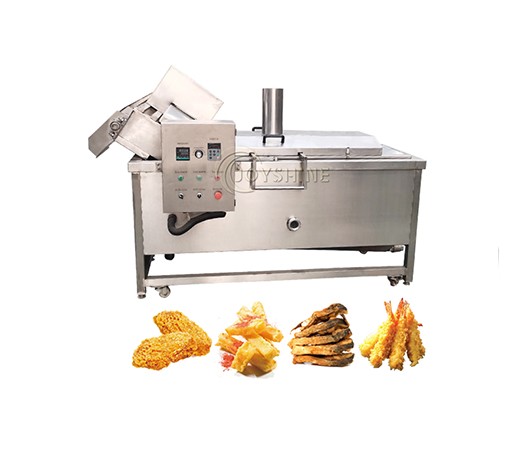

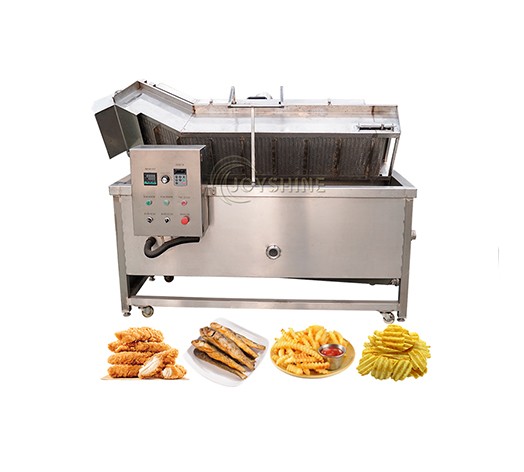

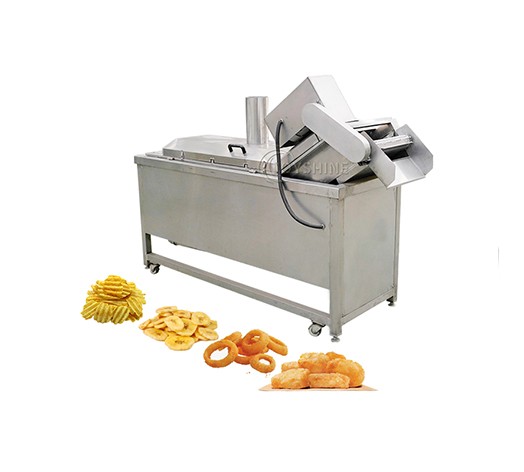

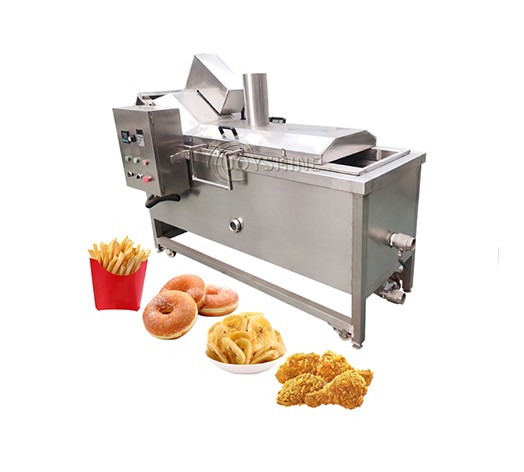

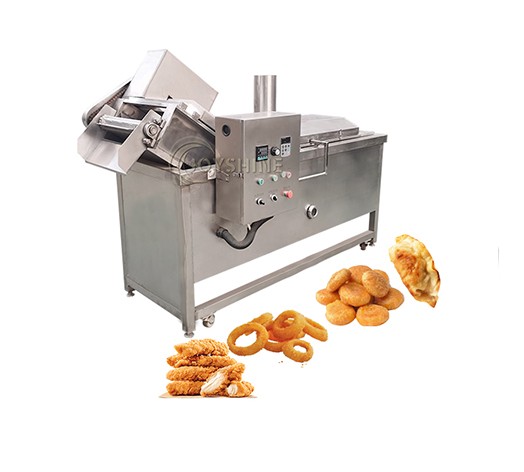

Small Scale Continuous Fryer

Description:

1.Continuous frying machine is made of stainless, temperature self-control, according to the characteristics of different fried food, free to set the temperature of the oil. Oil-temperature and water temperature separate control. 2.It is suitable for frying banana chops, french fries, peanut, chin, dough stick, broad beans, etc.

Advantage:

  • 1. Heating method: electricity, LNG or electromagetism.
  • 2. Automatic temperature control, range is 0-300 degree, with PLC touch screen control.
  • 3. Mesh conveying speed adjustable
  • 4. It can be equipped with oil filter machine and oil tank
  • 5. Equipped with mesh lifting system, easy to clean
  • 6. Unique inner structure with proprietary technology, energy saving, quick heating.
    • Description
    • Advantage
    • Parameters
    • Application
    • Video

Detailed Description

1.Continuous frying machine is made of stainless, temperature self-control, according to the characteristics of different fried food, free to set the temperature of the oil. Oil-temperature and water temperature separate control.
2.It is suitable for frying banana chops, french fries, peanut, chin, dough stick, broad beans, etc.

Description

1.Double mesh belt. The upper mesh belt is in the shape of a wave and has a baffle plate to drive the transfer of light materials such as potato chips to make it evenly fried to achieve better frying effect.
2.PLC control. Adjustable temperature and mesh belt speed. It means that you can set frying temperature and frying time and conveying speed on your own needs. For businessman, it is very convenient.
3.Automatic lifting device. Lift the mesh belt for easy cleaning inside
4.Oil Filter Screen. Preliminary rough filtration of residue
5.Oil filter device. Equipped with this device according to customer needs.
6.Oil storage tank. Equipped with this device according to customer needs.
7.Vacuum oil filter device. Equipped with this device according to customer needs

8.Three heating methods can be optional: gas, electricity and both of them

Advantage

  • 1. Heating method: electricity, LNG or electromagetism.
  • 2. Automatic temperature control, range is 0-300 degree, with PLC touch screen control.
  • 3. Mesh conveying speed adjustable.
  • 4. It can be equipped with oil filter machine and oil tank.
  • 5. Equipped with mesh lifting system, easy to clean.
  • 6. Unique inner structure with proprietary technology, energy saving, quick heating.
  • 7. With oil storage tank and oil circulating pump.
  • 8. Fire-extinguishing device and Oil refined filtration device is optional.
  • 9. This type frying machine can be used independently, it also can be used in one complete frying line or French fries potato chips making line or banana chips making line.

Parameters

Model Power(electric heating) Reference capacity Temperature Dimension Mesh belt width
JSLY4000 80kw 400kg/h 0-300℃ 4000*1200*2400mm 800-1000mm
JSLY5000 120kw 500kg/h 0-300℃ 4000*1200*2400mm 800-1000mm
JSLY6000 180kw 600kg/h 0-300℃ 4000*1200*2400mm 800-1000mm
JSLY8000 200kw 800kg/h 0-300℃ 4000*1200*2400mm 800-1000mm



Application

1. This continuous frying machine is mainly suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, spring rolls, peanuts, murukku, chakli, kurkure, cheetos and other snacks, widely used in food industry with large capacity. The whole material adopts SUS304 stainless steel of high quality.
2. This continuous fryer machine is suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, banana chips, spring rolls, peanuts and many other snacks.It is widely used in food industry with large capacity.
3. This continuous frying machine always works together with other machines like deoiling machine to combine one whole production line.
