Puffy Food Granule Packaging Machine
Description:

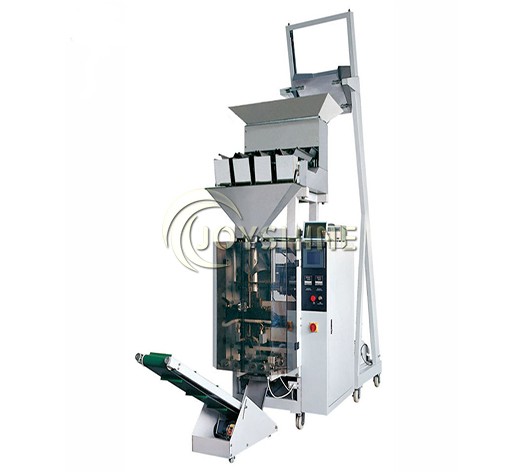

1. the unit included six part:JX-420 larger vertical packing machine

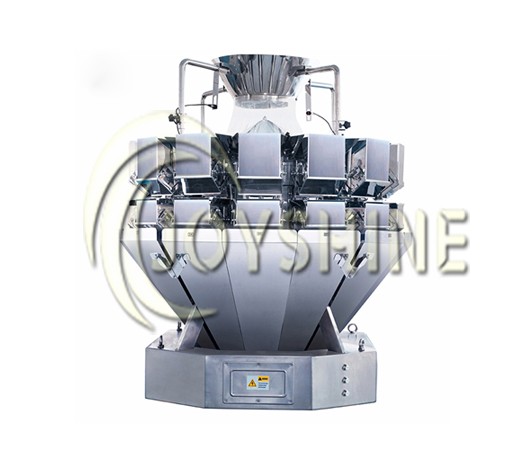

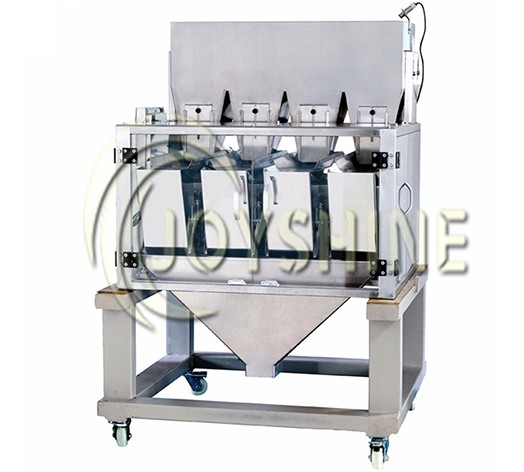

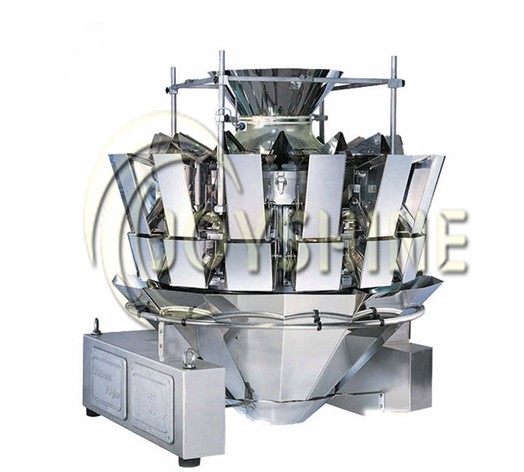

14/10/4 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device,bean
Puffy Food Granule Packaging Machine Advantage:
- 1. PLC control with touch panel-step by step instruction
- 2. Equipped withservo winding system, pneumatic control system.
- 3. The maximize to improve the whole machine precision, reliability and stability.
- 4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
- 5. The perfect automatic alarmsafety protection, little waste.
- 6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.
- Description
- Advantage
- Parameters
- Application
- Video
Detailed Description
1.the unit included six part:
JX-420 larger vertical packing machine
14/10/4 heads comnination weigher
Z type material conveyer includs vibration feeder, Supporting platform and Product conveyor
2.Pillow-type bag, Standing bag, punching device, Link-bag device
Advantage:
1. PLC control with touch panel-step by step instruction.
2. Equipped withservo winding system, pneumatic control system.
3. The maximize to improve the whole machine precision, reliability and stability.
4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
5. The perfect automatic alarmsafety protection, little waste.
6. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing, finished bag.
Parameters
|
Technical Parameter |
|||||
|
Model |
320A |
398A |
420A |
520A |
|
|
Packing zize |
W:50-150mm |
W:70-200mm |
W:80-200mm |
W:90-250mm |
|
|
L:50-200mm |
L:50-300mm |
L:50-300mm |
L:80-350mm |
|
|
|
Packing speed |
20-60bags/min |
10-60bags/min |
15-80bags/min |
30-80bags/min |
|
|
Range of measuring |
700ml |
150-1500ml |
150-1500ml |
Max 1500ml |
|
|
The max width of packing film |
320mm |
420mm |
420mm |
520mm |
|
|
Air consumption |
300L/min 0.6MPa |
400L/min 0.6MPa |
400L/min 0.6MPa |
500L/min 0.6MPa |
|
|
Main power/voltage |
2.7kW/220V 50-60Hz |
2.5kW/220V 50-60Hz |
2.2kW/220V 50-60Hz |
2.7kW/220V 50-60Hz |
|
|
The weight of main machine |
350Kg |
450Kg |
450Kg |
450Kg |
|
|
Dimension |
（L）1100*(W)800*(H)1940mm |
（L）1400*(W)970*(H)1700mm |
（L）110*(W)800*(H)1940mm |
（L）1480*(W)1200*(H)1700mm |
|
|
Film thickness |
0.04-0.10mm |
||||
|
Bag making mode |
Pillow-type bag, Standing bag, punching device,Link-bag device |
||||
|
Film material suggestion |
POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET |
||||
Application
1. It is suitable to use in packing and high accuracy and easy fragile material, such as: puffy food, crispy rice, jelly, candy, pistachio.
2. Apple slices, dumpling, chocolate, pet food, small hard wares,medicine etc.
3. Pillow-type bag, Standing bag, punching device, Link-bag device,bean.
