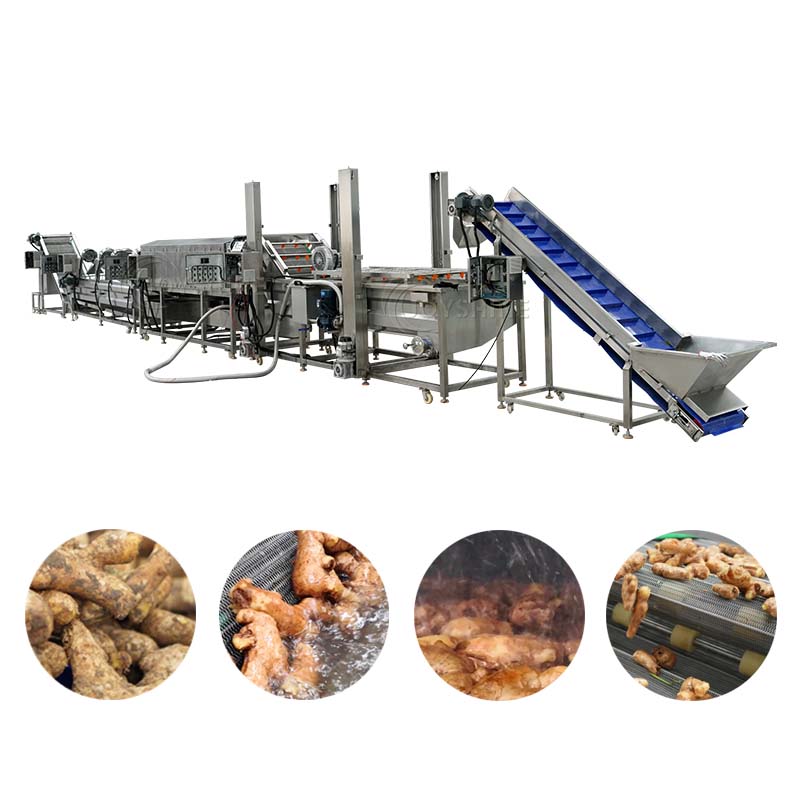

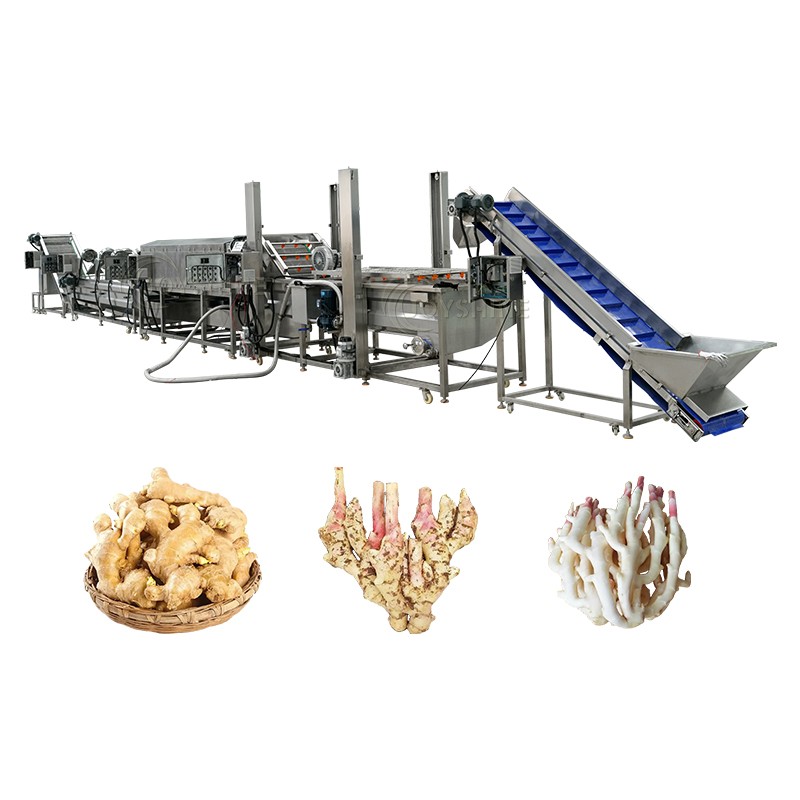

High-Efficiency Ginger Washing and Drying Production Line
Capacity: 500 – 5000 kg/h (Customizable)
Material: SUS304 Stainless Steel
Benefit: 70% Labor Reduction
- Description
- Advantage
- Parameters
- Application
- Video

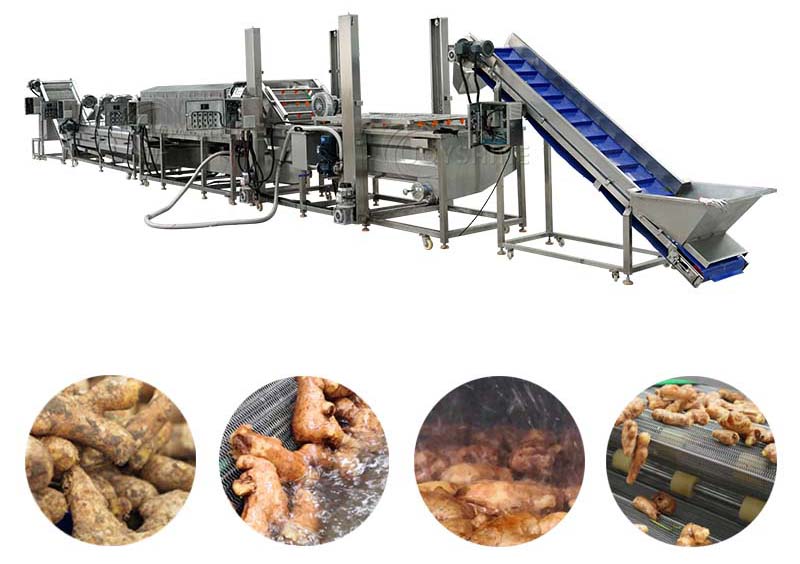

Production Line Workflow
1. Bubble Washing Machine
Uses vortex bubbling to remove dirt and impurities while protecting delicate produce from surface bruising.

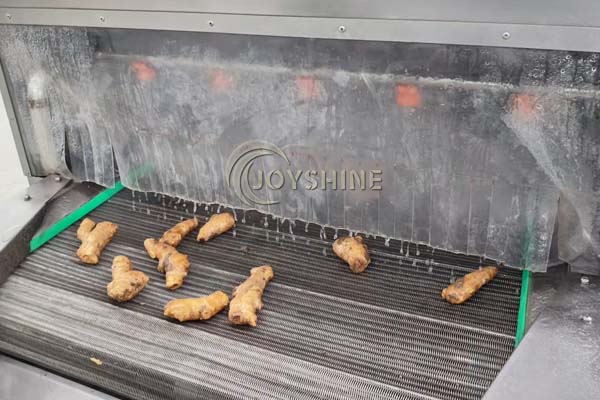

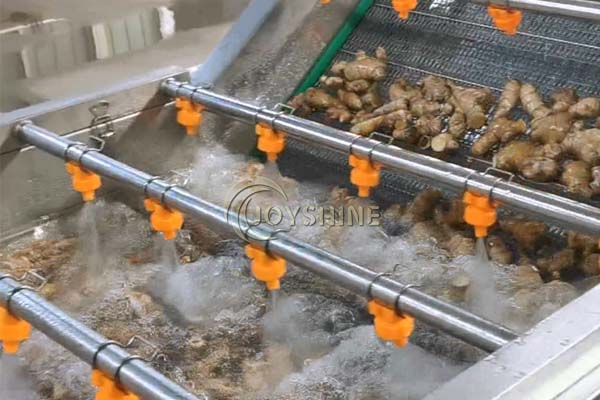

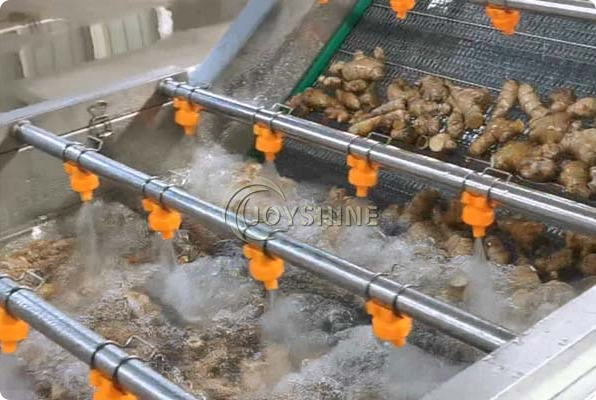

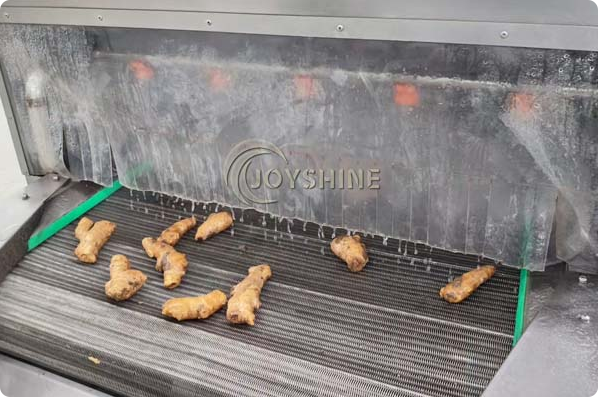

2. High-Pressure Spraying System
Focused water jets remove stubborn sand and debris; intensity is fully adjustable based on the material density.

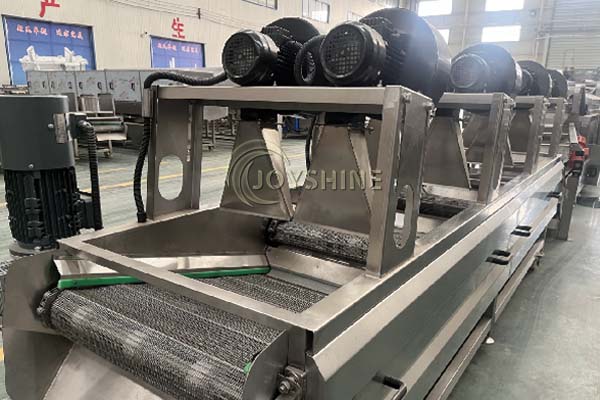

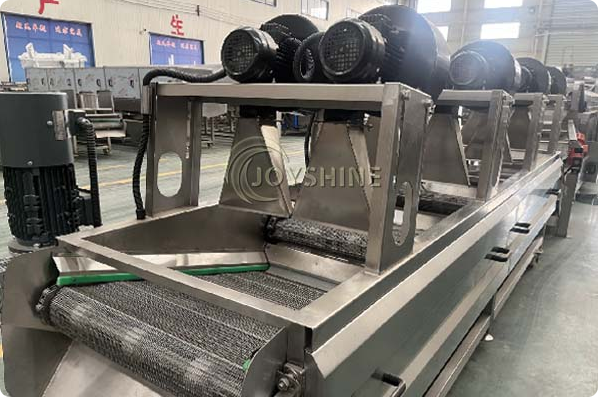

3. Air Drying Machine
Multiple high-speed air knives strip surface moisture without heat, preserving freshness and extending shelf life.
Core Advantages & Service
Joyshine Turnkey Solution
We provide end-to-end support—from plant layout design to 500kg/h – 5000kg/h capacity customization. Get your tailored design here.
Parameters
| Machine |
Model
|
Dimension
|
Weight
|
Voltage |
Power
|
Capacity
|
| Elevator | JS-SD-150 | 3000*800*900mm | 500kg | 380V | 6.6kw | 1000kg/h |
| Automatic Bubble Washing Machine |
JS-QPQX-4000
|
4000*1200*1300mm
|
700kg | 380V |
8.3kw
|
1000kg/h
|
| High Pressure Cleaning Machine |
JS-GYPL-3000
|
8000*1400*1600mm |
600kg
|
380V |
7kw
|
1000kg/h
|
| Air Cooling Drying Machine |
JS-FGX-4000
|
4000*1200*1300mm
|
700kg
|
380V |
6.6kw
|
1000kg/h
|

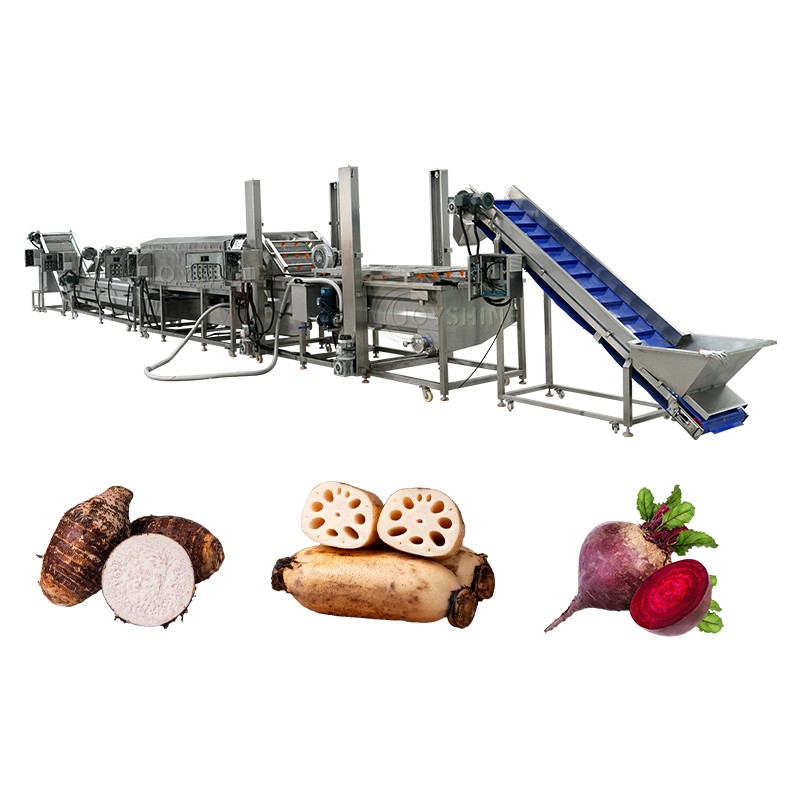

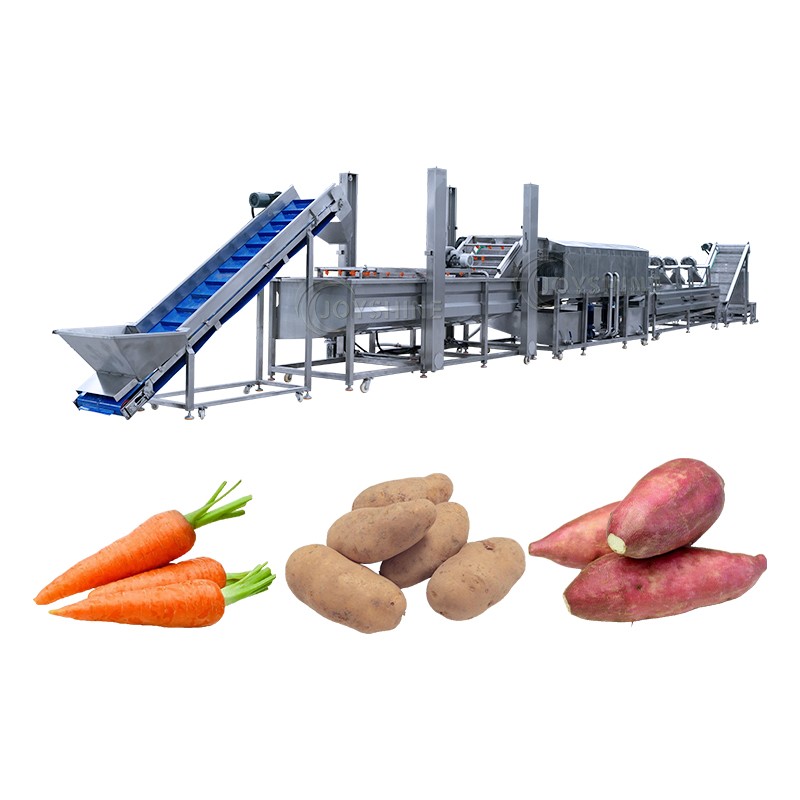

Industrial Applications
- Roots: Ginger, Carrots, Potatoes, Lotus Roots
- Fruits/Nuts: Red Dates, Walnuts
- Others: Shellfish, Seaweed
- Ginger & Vegetable Exporters
- Automated Central Kitchens
- Agri-food Processing Plants
- Fresh Produce Markets
Video of Ginger Washing and Drying lines
