Food Single Screw Extruder
Description:
Single screw extruder adopts flour, corn starch and potato starch as raw material, makes food through the process of extruding, cooking, shaping, drying and frying. By choosing different dies, different shapes food such as shell, screw, square tube, round tube, lotus root slices etc can be produced. The food is very popular in market. This processing line has the advantage of rational design, high automatic degree and accuracy control.Advantage
- 1. Capacity: 120kg/h -250kg/h and work flow can be customized.
- 2. Raw materials: all kinds of grain powder, such as wheat flour, corn powder, rice powder and so on.
- 3. Products: Rice crusts, chips, bulges, pizza, rolls, doritos, kurkure, cheetos, etc.
- 4. Can be used in production line of work flow: Mixer--- Screw Conveyor ---- Double Screw Extruder --- Compound Cutting Machine --- Auto Fryer --- Double Roller Flavor Machine --- Packaging Machine
- Description
- Advantage
- Parameters
- Application
- Video

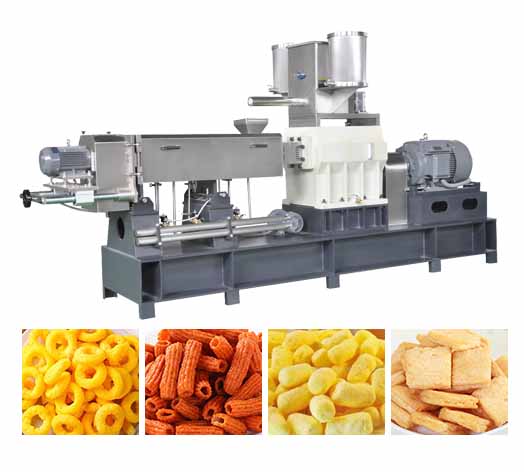

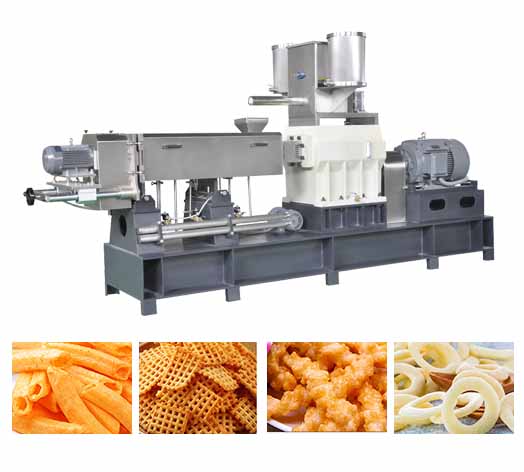

Introduction of food single screw extruder
Single screw extruder adopts flour, corn starch and potato starch as raw material, makes food through the process of extruding, cooking, shaping, drying and frying. By choosing different dies, different shapes food such as shell, screw, square tube, round tube, lotus root slices etc can be produced. The food is very popular in market. This processing line has the advantage of rational design, high automatic degree and accuracy control.
The capacity is from 120kg/h to 250kg/h. We also offer customized service.
Raw material of making food by single screw extruding machine
Wheat flour,corn powder,rice powder and other grains powder.
Suitable products:
This extruder is suitable for producing puffing snacks food, bread crumbs, breakfast cereals, corn flakes, artificial rice, modified starch, baby rice powder, and dog pet feed and so on. the products have various types of shapes.
Advantage
1. Single screw extruder adopts flour, corn starch and potato starch as raw material, makes food through the process of extruding, cooking, shaping, drying and frying. By choosing different dies, different shapes food such as shell, screw, square tube, round tube, lotus root slices etc can be produced. The food is very popular in market. This processing line has the advantage of rational design, high automatic degree and accuracy control.
2. The model is YZSSE100, the output is 100-120kg/h.
3. The main body material is stainless steel, which is easy to be cleaned.
4. The screws material is 38CrMnAl, which is wear-resisting.
5. Our project is turn-key. We will send our engineer to your factory, install and debug the equipments, and train your operators.
6. The processing line needs two workers to operate.
7. The temperature and rotating speed can be controlled and adjusted.
8. The processing line has self-cleaning function.
Food double screw extruding machine parameters
|
Model |
Motor power |
Output |
size |
Screw diameter |
|
JX76-SSE |
22kw |
100-150kg/h |
1800*1200*2200mm |
Φ70 |
|
JX100-SSE |
30kw |
80-120kg/h |
3500*1100*2100mm |
Φ100 |
|
JX105-SSE |
30kw |
120-200kg/h |
2800*2000*2600mm |
Φ100 |
Application
Raw material: all kinds of grain flour
1. Small food processing plant, snack food factory, fruit processing plant.
2. Hotels, snacks store, small snack plant etc.
Video of food single screw extruder
